Installation kit of tubes Energoflex® Acoustic
Description

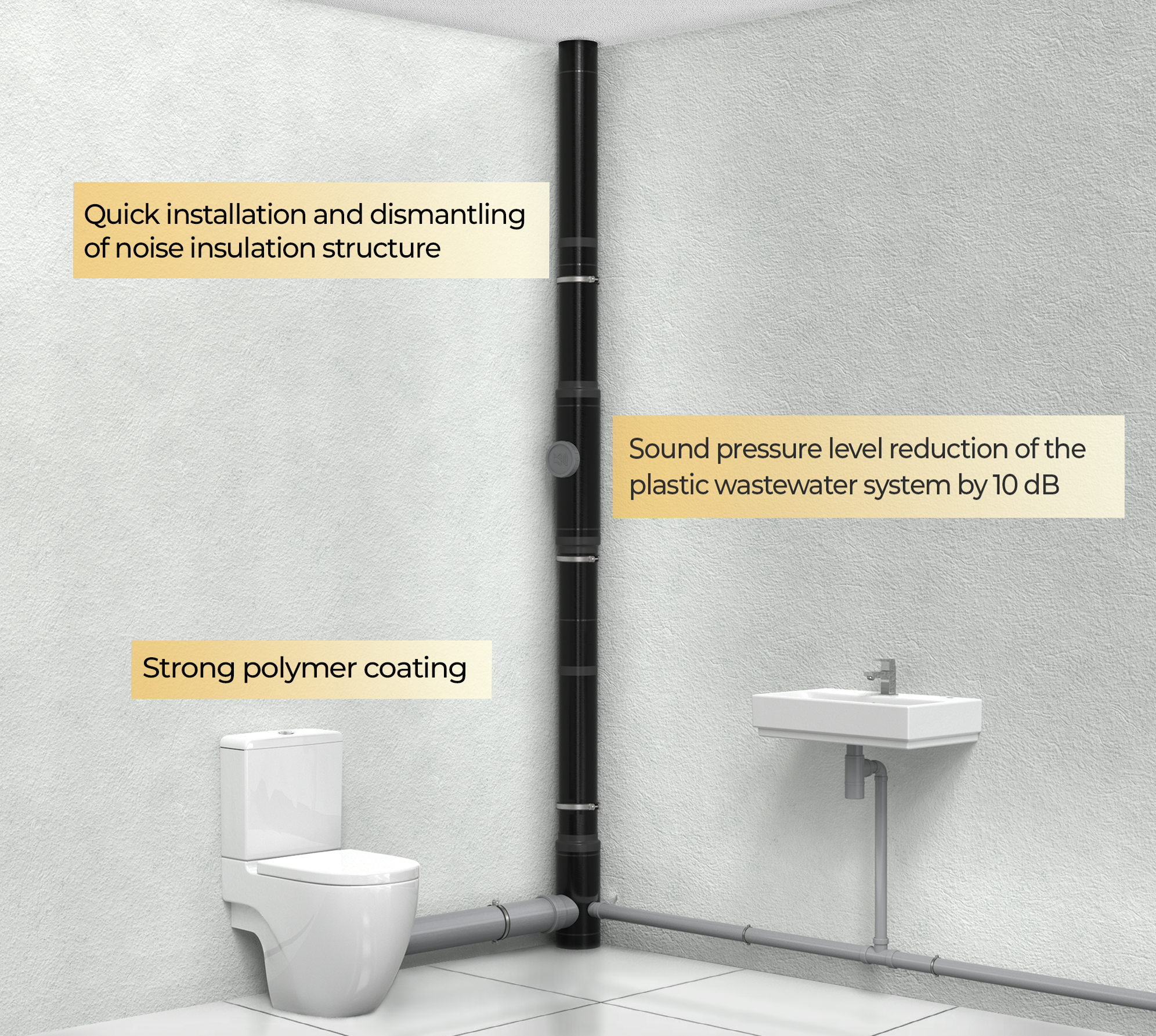

Installation kit of tubes Energoflex® Acoustic is designed for fast and reliable noise isolation of sewage standpipes.
The absence of an adhesive layer on the inner surface allows for quick installation and dismantling of the noise insulation structure.
The template of shaped elements applied to the packaging box of the set simplifies the marking of the material and reduces its consumption.
The durable black polymer coating gives the noise insulation an aesthetic appearance.
Sound pressure level reduction of the plastic wastewater system by 10 dB.
Easy and fast installation with minimal waste.
Durable black polymer coating
Specifications
| Feature | Value | Method |
| Sound pressure level reduction from plastic sewage pipes, dB (A) | 10 | DIN EN 14366 |
| Reaction to fire | G1 | |
| Corrosion safety | Resistance to aggressive construction materials – cement, concrete, gypsum, lime | |
| Environmental aspects | Chlorofluorohydrocarbons and sulfur free |
Range
| Item | Article |
| Installation kit of tubes Energoflex® Acoustic | EFXTSETACU |
| Item | Quantity |
| Tube Energoflex® Acoustic 110 mm (L=1000 mm) | 3 pc. |
| Tube Energoflex® Acoustic 130 mm (L=1000 mm) | 1 pc. |
| Self-adhesive tape Energopro® PVC (48 mm х 33 mm) | 1 pc. |
| Screed clamp (L=600 mm) | 20 pc. |
Certificates
Certificate of conformity
Russia
Certificate of_compliance with fire safety
Russia
Conclusion on confirmation of production in the Russian Federation
Russia
Expert opinion
Russia
Technical certificate
Belarus
Сertificate of conformity
Kazakhstan
Certificate of conformity
Uzbekistan
Test report
Germany

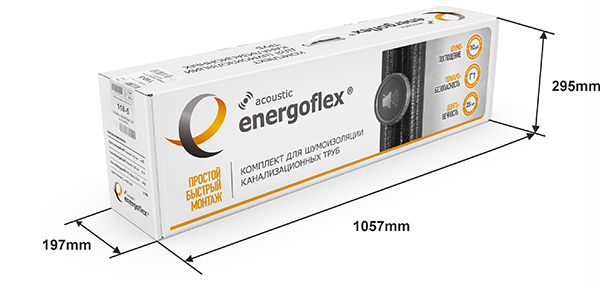

Packaging
| Item | Дength, мм | Width, мм | Height, мм | Gross weight, kg | Package volume, m3 | Quantity of packings on the pallet, pcs. |
| 1057 | 295 | 197 | 1,85 | 0,061 | 32 |
