Tubes Energoflex® Acoustic


The noise-attenuating material Energoflex® Acoustic is developed specifically for improvement of acoustic comfort of buildings.

The gear profile of an internal surface and high density of material allow to reduce considerably noise in sanitary systems.
According to the researchers conducted in Fraunhofer Institute for Building Physics (Stuttgart, Germany) according to EN 14366, application of Energoflex® Acoustic allows to sound pressure level reduction of the plastic wastewater system by 10 dB.

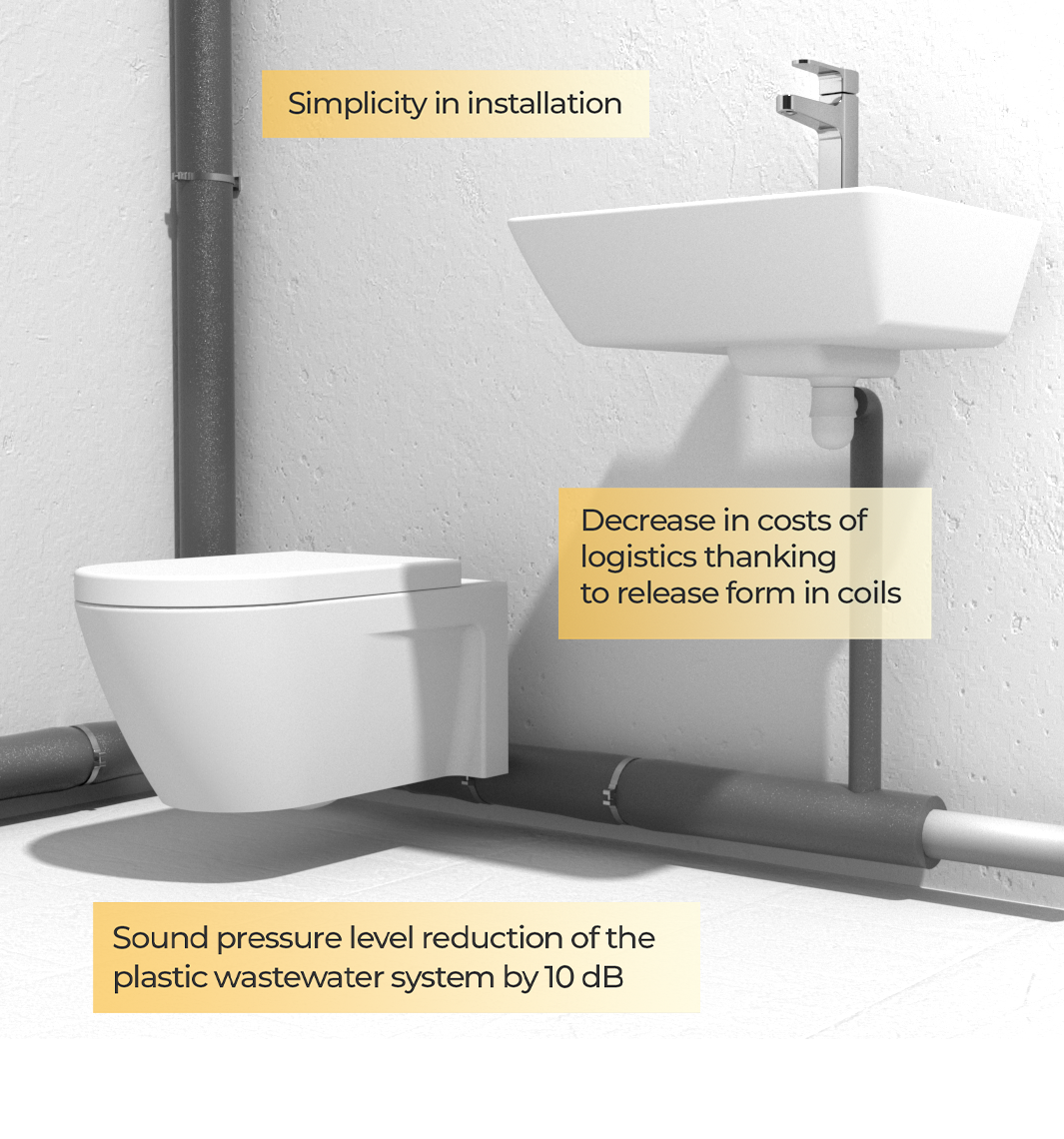

  • Environmentally friendly
Sound pressure level reduction of the plastic wastewater system by 10 dB.
Decrease in costs of logistics thanking to release form in coils.
Simplicity in installation with the minimum quantity of waste.


Feature Value Method
Sound pressure level reduction from plastic sewage pipes, dB (A) 10 DIN EN 14366
Reaction to fire G1 GOST 30244-94
Corrosion safety Resistance to aggressive construction materials – cement, concrete, gypsum, lime
Environmental aspects Chlorofluorohydrocarbons and sulfur free


Item Article Inner Ø of insulation Length
Quantity per package
Tube Energoflex® Acoustic 110-5 EFXT1105ACU 110 mm 5 m 25 m
Tube Energoflex® Acoustic 110-2 EFXT1102ACU 110 mm 2 m 56 m


Tubes being 5 meters in coils are packed into cartons with dimensions of 400 x 400 x 1010 mm

Tubes being 2 meters are packed into cartons with dimensions of 395 x 595 x 2050 mm

Standart size Quantity per package, m Gross weight, kg Package volume, m3 Quantity of packings on the pallet, pcs.
Tube Energoflex® Acoustic 110-5 25 5,15 0,160 12
Tube Energoflex® Acoustic 110-2 56 12,15 0,482 4


Montage knife Energopro®
Montage knife Energopro®
Blade length: 295 mm EPRKNIFE
Tape Energoflex® Super SK
Tape Energoflex® Super SK
Thickness: 3 mm EFXL0305015SUSK
Width: 50 mm
Length: 15 m
Temperature: Not below 10°С


Energoflex® Acoustic - special noise-reduction material
