Tubes Energoflex®   Acoustic


The noise-attenuating material Energoflex® Acoustic is specially developed for improvement of acoustic comfort of buildings. The gear profile of an internal surface and high density of material allow to reduce considerably noise in sanitary systems.
According to the researchers conducted in Fraunhofer Institute for Building Physics (Stuttgart, Germany) according to EN 14366, application of Energoflex® Acoustic allows to sound pressure level reduction of the plastic wastewater system by 10 dB.
Insulation easily, quickly and with the minimum quantity of waste is mounted on pipelines with a diameter of 110 mm. The release form in coils allows to lower three times costs of logistics of transportations and warehousing.
Environmentally friendly and safe material, doesn't demand special means of protection at installation.
Sound pressure level reduction of the plastic wastewater system
by 10 dB.
Decrease in costs of logistics thanking to release form in coils.
Simplicity in installation with the minimum quantity of waste.

Specifications
Feature Value Method
Sound pressure level reduction from plastic sewage pipes, dB (A) 10 DIN EN 14366
Reaction to fire G1 GOST 30244-94
Corrosion safety Resistance to aggressive construction materials – cement, concrete, gypsum, lime
Environmental aspects Chlorofluorohydrocarbons and sulfur free

Range
Item Article Inner Ø of insulation Length
 Quantity per package
Tube Energoflex® Acoustic 110-5 EFXT1105ACU 110 mm 5 m 25 m
Tube Energoflex® Acoustic 110-2 EFXT1102ACU 110 mm 2 m 56 m

Tubes Energoflex® Acoustic
Download (.pdf, 0.56Mb)

Russia

Certificate of conformity
Download (.pdf, 4.15Mb)
Certificate of_compliance with fire safety
Download (.pdf, 0.92Mb)
Expert opinion
Download (.pdf, 3.4Mb)

Belarus

Technical certificate
Download (.pdf, 11.32Mb)

Kazakhstan

Сertificate of conformity to safety requirements
Download (.pdf, 1.66Mb)

Germany

Test report
Download (.pdf, 1.88Mb)

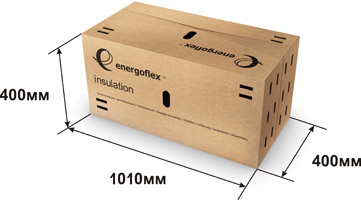

Tubes being 5 meters in coils are packed into cartons with dimensions of 400 x 400 x 1010 mm
Tubes being 2 meters are packed into cartons with dimensions of 395 x 595 x 2050 mm
Standart size Quantity per package, m Gross weight, kg Package volume, m3 Quantity of packings on the pallet, pcs.
Tube Energoflex® Acoustic 110-5 25 5,15 0,160 12
Tube Energoflex® Acoustic 110-2 56 12,15 0,482 4

Montage knife Energopro
A montage knife Energopro® with a specific sharpening is intended for the insulation cutting. The knife has a special form and dimensions allowing to simplify the work of a professional fitter as much as possible. Артикул
Blade length: 295 mm ERRKNIFE
Reinforced tape Energopro®
Reinforced self-adhesive tape Energopro® of gray color is applied at installation of Energoflex® Super insulation. Due to the reinforcing net the tape possesses high rupture strength. Article
Approximate
expenditure:		 1,15 – 1,45 of the straight piping length of a pipeline;
26 m on 10 m2 isolated surface
Width: 48 mm

Height:		 25 m EPRL04825ARSKGRR
EPRL04825ARSKGR
50 m EPRL04850ARSKGRR
EPRL04850ARSKGR
Temperature: Not below 10°С

Reinforced self-adhesive tape Energopro® of black color is applied at installation of Energomax®, Energoflex® Black Star and Energoflex® Super Protect Black insulation. Due to the reinforcing net the tape possesses high rupture strength. Article
Approximate
expenditure:		 1,15 – 1,45 of the straight piping length of a pipeline;
26 m on 10 m2 isolated surface
Width: 48 mm
Height: 25 m EPRL04825ARSKBKR
EPRL04825ARSKBK
50 m EPRL04850ARSKBKR
EPRL04850ARSKBK
Temperature: Not below 10°С

Reinforced self-adhesive tape Energopro® of blue and red colors is applied at installation of Energoflex® Super Protect insulation. Due to the reinforcing net the tape possesses high rupture strength. Article
Approximate
expenditure:		 1,15 – 1,45 of the straight piping length of a pipeline;
Width: 48 mm
Height, colour:   25 m, blue EPRL04825ARSKBLR
EPRL04825ARSKBL
25 m, red EPRL04825ARSKRDR
EPRL04825ARSKRD
Temperature: Not below 10°С
Tape Energoflex® Super SK
Self-adhesive tape Energoflex® Super SK from polyethylene foam possesses a low coefficient of heat conductivity (λ0=0,035 Вт/(м·°С) and is intended for the insulation of fittings, accessories and hard-to-reach sections of pipelines in heating and water supply systems, as well as for the sealing of different joints. Article
Thickness: 3 mm EFXL0305015SUSK
Width: 50 mm
Length: 15 m
Temperature: Not below 10°С

Energoflex® Acoustic - special noise-reduction material
